Note

LiveOps Events are under active development and not yet feature-complete. They are safe to use in production but the UI and underlying API will change over the next few releases as we continue to work on them.

Key Concepts

• A LiveOps Event is an in-game occurrence managed through the LiveOps Dashboard where a special feature becomes available for players during a scheduled period of time.

Dependencies

• Running the LiveOps Dashboard locally - To follow along with this page, you should have access to an instance of the LiveOps Dashboard running on your local machine. Check out the Developing the LiveOps Dashboard guide for more details.

• Basic familiarity with in-game Events - We strongly recommend you take a look at the Introduction to Game Events page, so you can get a general idea of how events work and the difference between config-driven and LiveOps Events before proceeding with this guide.

Overview

In this guide, we'll implement an example Event where players need to click a button a set number of times during the Event in order to get rewards at the end. This is meant to serve as an example so you can get acquainted with the process and adapt the code to your own gameplay needs.

Step 1: Defining the Event Type

To define what the event's parameters are, it's necessary to define a subclass of LiveOpsEventContent in the game's server-client shared code.

After that, we need to define a subclass of PlayerLiveOpsEventModel<> in the PlayerModel to hold the state of any player data you'd like to keep track of during the Event while it is active. If you don't need any state for the event, you don't need to define any properties for it - but the class still needs to exist.

For now, we'll define just the data members. Later in this guide, we'll augment these classes with gameplay functionality.

Assets/SharedCode/Events/ButtonClickingEvent.cs

// This defines the configuration of the event, configurable via the LiveOps Dashboard when creating the event.
[LiveOpsEvent(1, "Button Clicking Event")]
public class ButtonClickingEvent : LiveOpsEventContent
{
    // How many clicks the player needs to do during the vent to get the rewards at the end.
    [MetaMember(1)] public int NumClicksRequired { get; private set; } = 10;
    // What rewards the player gets at the end of the event if the required number of clicks was reached.
    [MetaMember(2)] public List<MetaPlayerRewardBase> Rewards { get; private set; } = new();
}

// This defines the state for the event stored within PlayerModel.
[MetaSerializableDerived(1)]
public class ButtonClickingEventModel : PlayerLiveOpsEventModel<ButtonClickingEvent, PlayerModel>
{
    // How many times the player has clicked the button during the event.
    [MetaMember(1)] public int NumClicksDone { get; private set; } = 0;
}

Step 2: Creating an Event in the LiveOps Dashboard

Even before implementing the Event further, it's already possible to get a feel for how the events are created and viewed in the LiveOps Dashboard.

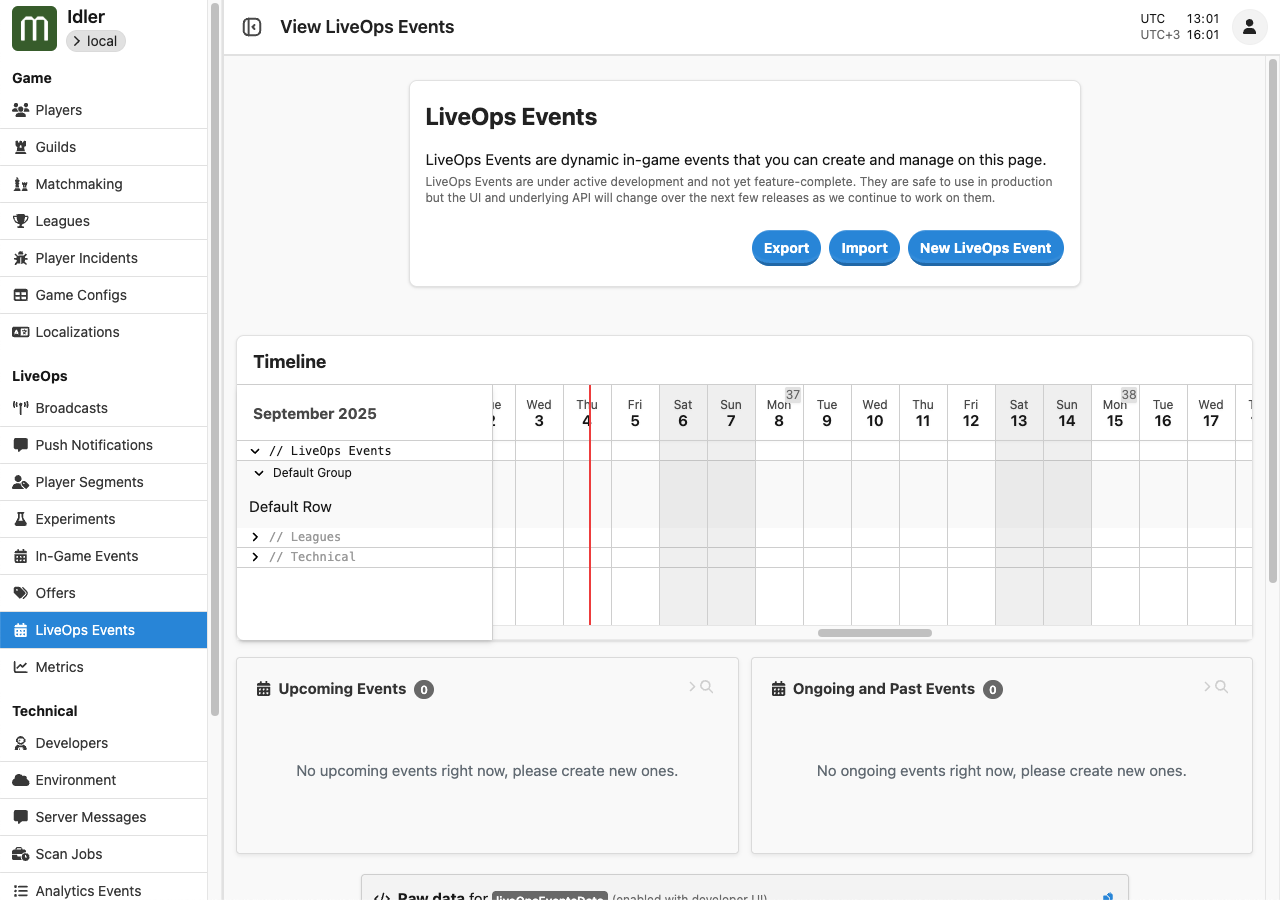

To create an event, run the game's server and LiveOps Dashboard locally. In the dashboard, navigate to the LiveOps Events page, through the sidebar. The LiveOps events entry in the navigation menu becomes visible as soon as there are any Event types defined in the C# code.

Click the New LiveOps Event button to open a form and create a new Event,

You can select your Event type from the top-left dropdown menu and give the Event a name and description (these are only for the dashboard, not for game clients). On the right, you can fill in values for the custom parameters defined previously in the Event class (in our case, ButtonClickingEvent).

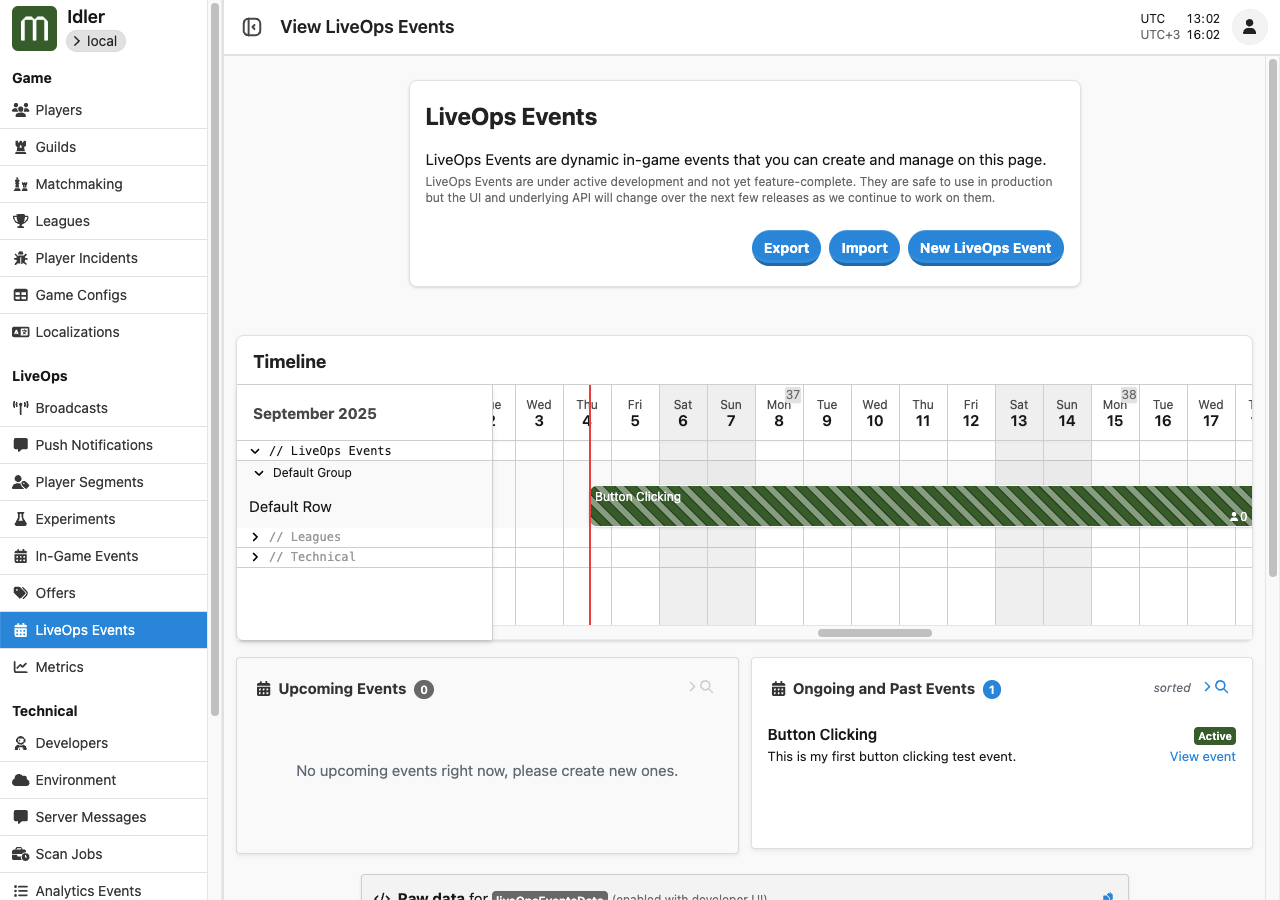

When you're done, by clicking the Create Event button the Event will be created in the backend and shown on the LiveOps events page. Since we didn't set a schedule for the Event when we created it, it'll immediately become active and available to players.

Step 3: Implementing the Game Client UI

To make the events show up in the game's UI, we need code that reads the current events from PlayerModel.LiveOpsEvents and updates the UI accordingly. For example, let's say our game has a list showing each Event the player is participating in. This script reads a single Event from PlayerModel and updates its UI:

Assets/Code/EventListItemScript.cs

public class EventListItemScript : MonoBehaviour
{
    public MetaGuid EventId;

    public TextMeshProUGUI ContentText;
    public TextMeshProUGUI PhaseText;

    void Update()
    {
        PlayerModel player = MetaplayClient.PlayerModel;
        if (!player.LiveOpsEvents.EventModels.TryGetValue(EventId, out PlayerLiveOpsEventModel eventModel))
            return;

        // For simplicity, this refreshes the event's UI on every Update().
        // In reality, you could initialize the UI in Start() and then only on subsequent changes to the state.

        // `eventModel` holds the state and client-visible parameters of this event,
        // including its current phase and the custom content defined in your event type.

        PhaseText.text = $"Phase: {eventModel.Phase}";

        // Generally, player.LiveOpsEvents.EventModels contains events of all the different
        // types in your game. Here we handle just ButtonClickingEventModel.
        if (eventModel is ButtonClickingEventModel buttonEvent)
        {
            int numClicksDone = buttonEvent.NumClicksDone;
            int numClicksRequired = buttonEvent.Content.NumClicksRequired;
            ContentText.text = $"{numClicksDone} out of {numClicksRequired} clicks done!";
        }
    }
}

This is a minimal implementation and, for brevity, we're omitting to show how it is wired into a Unity scene.

This script adds and removes the UI items for the events:

Assets/Code/EventListScript.cs

public class EventListScript : MonoBehaviour
{
    public EventListItemScript EventListItemPrefab;

    public OrderedDictionary<MetaGuid, EventListItemScript> _eventUIs = new();

    void Update()
    {
        PlayerModel player = MetaplayClient.PlayerModel;

        // Remove stale UI items and add new ones, according to what events exist in player.LiveOpsEvents.
        // For the simplicity of this example, this is just a naive polling loop. To avoid polling,
        // you can trigger this only when needed by using the IPlayerModelClientListenerCore interface
        // (explained later in this document).

        // Remove UI items of events that have ended and been removed from player.LiveOpsEvents.

        List<MetaGuid> removedEvents = null;
        foreach ((MetaGuid eventId, EventListItemScript eventUI) in _eventUIs)
        {
            if (!player.LiveOpsEvents.EventModels.ContainsKey(eventId))
                (removedEvents ??= new()).Add(eventId);
        }
        if (removedEvents != null)
        {
            foreach (MetaGuid eventId in removedEvents)
            {
                Destroy(_eventUIs[eventId].gameObject);
                _eventUIs.Remove(eventId);
            }
        }

        // Add new UI items for events that don't have them yet.

        foreach (PlayerLiveOpsEventModel eventModel in player.LiveOpsEvents.EventModels.Values)
        {
            if (!_eventUIs.ContainsKey(eventModel.Id))
            {
                EventListItemScript eventUI = Instantiate(EventListItemPrefab, transform);
                eventUI.EventId = eventModel.Id;
                _eventUIs.Add(eventModel.Id, eventUI);
            }
        }
    }
}

After implementing the UI, the player should be able to see the ongoing events available to them.

Note that due to various server-side polling intervals, it may currently take up to roughly 30 seconds for a new Event to become visible to the client after you create it in the dashboard. Likewise, if you define a schedule for the event, its phase changes will become visible to clients with some delay.

Step 4: Implementing Gameplay Functionality

The PlayerModel.LiveOpsEvents member is part of the server-client shared player state and is accessible from PlayerActions. Therefore, you can write game logic that behaves according to what events the player is participating in. Additionally, the PlayerLiveOpsEventModel class has hooks you can use to run game logic code when an event's phase changes.

In this example, we'll make the Event count the number of button clicks along its duration. We're assuming the button in question is already in the game and an action called PlayerClickButton exists and is invoked when the player clicks the button.

First, let's augment the ButtonClickingEventModel with a method for incrementing the number of clicks during the event:

Assets/SharedCode/Events/ButtonClickingEvent.cs

public class ButtonClickingEventModel : ...
{
    ...

    public void OnButtonClicked(PlayerModel player)
    {
        // Only count clicks while the event is truly active, and not in preview or review phase.
        if (Phase.IsActivePhase())
        {
            player.Log.Debug("Click recorded in button clicking event {EventId}", Id);
            NumClicksDone++;
        }
    }
}

Then, we'll call this method in PlayerClickButton, for each ongoing event:

Assets/SharedCode/Player/PlayerActions.cs

[ModelAction(ActionCodes.PlayerClickButton)]
public class PlayerClickButton : PlayerAction
{
    public PlayerClickButton() { }

    public override MetaActionResult Execute(PlayerModel player, bool commit)
    {
        if (commit)
        {
            ...

            // Call OnButtonClicked() for each ongoing ButtonClickingEventModel.
            foreach (PlayerLiveOpsEventModel liveOpsEvent in player.LiveOpsEvents.EventModels.Values)
            {
                if (!(liveOpsEvent is ButtonClickingEventModel buttonEvent))
                    continue;

                buttonEvent.OnButtonClicked(player);
            }
        }

        return ActionResult.Success;
    }
}

Now, while the Event is active it counts the button clicks. Let's now make the event grant the rewards when it's over if the player clicked the button enough times. We can do this in the ButtonClickingEventModel by overriding OnPhaseChanged().

Assets/SharedCode/Events/ButtonClickingEvent.cs

public class ButtonClickingEventModel : ...
{
    ...

    protected override void OnPhaseChanged(PlayerModel player, LiveOpsEventPhase oldPhase, LiveOpsEventPhase[] fastForwardedPhases, LiveOpsEventPhase newPhase)
    {
        // Grant the rewards to the player when the event moves to the Concluded phase.
        // This happens after the event has ended, just before the event is removed from PlayerModel.
        if (newPhase == LiveOpsEventPhase.Concluded)
        {
            if (NumClicksDone >= Content.NumClicksRequired)
            {
                player.Log.Debug("Player reached {NumClicks}/{NumClicksRequired} clicks during event, granting rewards (event {EventId})", NumClicksDone, Content.NumClicksRequired, Id);
                foreach (MetaPlayerRewardBase reward in Content.Rewards)
                    reward.InvokeConsume(player, source: null);
            }
            else
                player.Log.Debug("Player reached only {NumClicks}/{NumClicksRequired} clicks during event, not granting rewards (event {EventId})", NumClicksDone, Content.NumClicksRequired, Id);
        }
    }
}

Trying Out the Full Event Flow

Finally, our button-clicking Event is now implemented! If you followed the guide up to here, you can try out the event's operation in the following way:

1. Create an event, like we did in Step 2.
2. Start the game client and wait for the Event to appear.
3. In the game client, click the button to reach the required number of clicks.
4. In the LiveOps Dashboard, navigate to the event's page and click the Conclude button to end the Event,
5. Back to the game client, wait for the event's conclusion to take effect. This may take up to 30 seconds. Bingo! You should see the rewards being granted. Also, note the output in the Unity log console.

Further Reading

This example should help you get started with implementing your own events. Here's a few suggestions of further improvements you'd probably need in a real game:

• In Configuring LiveOps Events you can find out how to set a schedule for the event and target it to specific player segments.
• In the Advanced LiveOps Events Integration page, you can learn how to show a "time remaining" indicator in the client UI, create a "Claim Rewards" button the player needs to click to get the event's rewards, show a popup when the Event starts and ends, and write the client UI in a listener-based implementation to avoid polling every frame.
